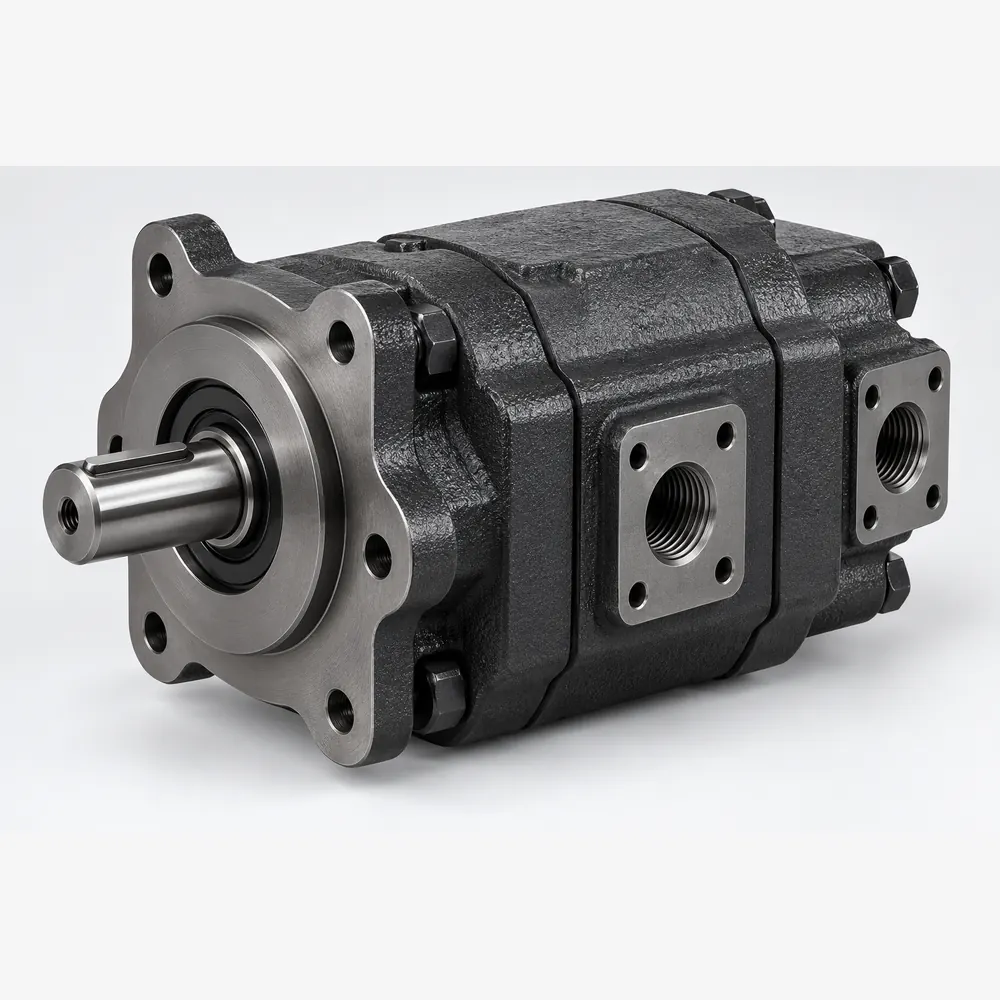

Casappa Polaris PH Cast-Iron Gear Pumps and Motors

Description

Casappa Polaris PH Cast-Iron Gear Pumps and Motors

Polaris PH is the cast-iron-body evolution of the Polaris gear-pump and motor family. It retains a broad choice of shafts, flanges, ports and built-in valves while adding a stronger housing suited to demanding operating conditions. The current Casappa range lists displacements from 8.26 to 33.03 cm³/rev, peak pressure up to 300 bar and speed up to 3,500 rpm.

This INTEREQ listing covers the Casappa PHP pump / PHM motor product family for identification, replacement enquiries and quotation support. Pump and motor variants within a family may have different operating directions, shafts, flanges, ports, controls and mounting interfaces; confirm the complete manufacturer code for the exact unit.

Technical specifications

Applications

The Casappa PHP pump / PHM motor family is intended for forklifts, skid-steer loaders and mobile machines where an aluminium-body pump may be near its operating limit. The manufacturer’s broader product range serves construction, industrial, agriculture, material-handling and on-highway applications. Final suitability depends on the machine, hydraulic circuit, duty cycle and installed component configuration.

Key features and compatibility

Polaris PH is the cast-iron-body evolution of the Polaris gear-pump and motor family. It retains a broad choice of shafts, flanges, ports and built-in valves while adding a stronger housing suited to demanding operating conditions. The current Casappa range lists displacements from 8.26 to 33.03 cm³/rev, peak pressure up to 300 bar and speed up to 3,500 rpm. Variants and available controls differ across the family. Performance limits depend on displacement, speed, oil conditions and the selected configuration. Treat the published family range as an identification aid, not as a guarantee that every combination is suitable for every application.

Model identification and replacement selection

Do not select a replacement by series name or displacement alone. Confirm the full Casappa type code, rotation, shaft, mounting flange, port arrangement, controls and hydraulic circuit against the installed unit and machine documentation. Send INTEREQ a clear nameplate photo and machine make/model for identification.

For a quotation, provide the full type code, machine model and any available drawing or nameplate image. Availability, condition and technical fit are confirmed for the specific unit offered.
