Danfoss H1F Fixed Bent-Axis Hydraulic Motor

Description

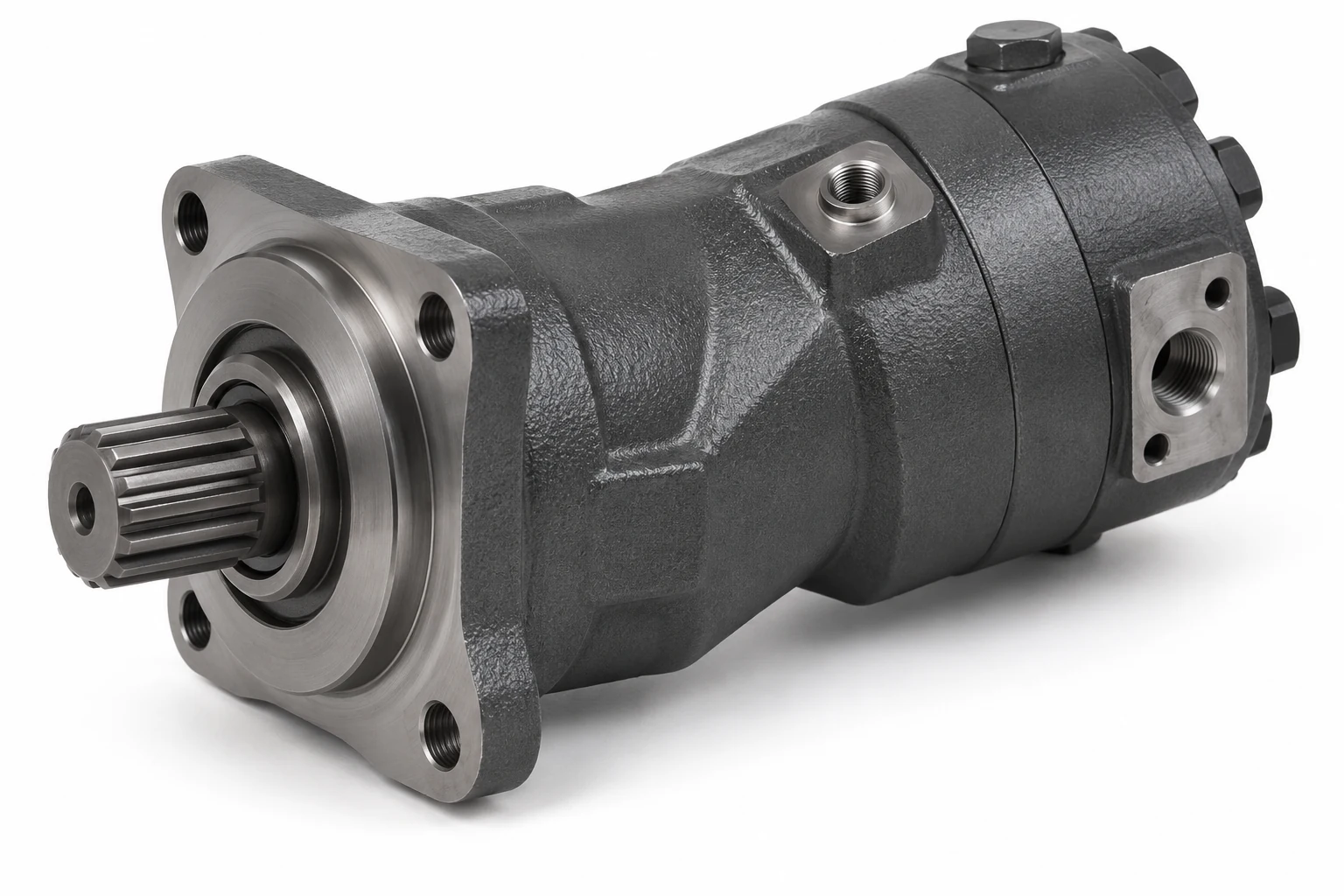

Danfoss H1F Fixed Bent-Axis Hydraulic Motor

Danfoss H1F Fixed Bent-Axis Hydraulic Motor is part of the current Danfoss Power Solutions hydraulic portfolio. H1F is a fixed-displacement bent-axis axial piston motor based on Danfoss H1 technology.

Manufacturer family: H1F (complete type code required)

Family-level product information: The specifications below describe the Danfoss family or product range, where applicable. They do not identify a single configured unit. Variants within a series can differ in displacement, pressure rating, control, shaft, mounting, ports, rotation and optional equipment; the complete type code is needed to check the requested configuration.

H1F Fixed Bent-Axis Hydraulic Motor for hydraulic equipment

This listing covers the Danfoss H1F Fixed Bent-Axis Hydraulic Motor. The family uses bent-axis axial piston technology and is listed for mobile propel, work functions, excavators, cranes, drilling and other demanding hydraulic drives. The range can include multiple sizes and configurations, so the complete type code and the machine’s requirements are needed to determine whether a specific unit suits the application.

Technical specifications

Use the values in this table as a first technical reference. Where a range or family-level figure is shown, confirm the exact rating for the complete model code and operating conditions before specifying a replacement.

Applications

Mobile propel, work functions, excavators, cranes, drilling and other demanding hydraulic drives.

In mobile hydraulic drives, the motor converts supplied hydraulic flow and pressure into rotary output. The application, load profile and circuit design determine which displacement and configuration are appropriate. The listed application sectors help frame the product search, but do not replace checks against the machine, installation space, duty and interface requirements. Please include those details with an enquiry so the requested version can be assessed.

Key features and compatibility

The compact H1F design is intended for efficient integration; verify displacement, shaft, ports and control/accessory options. Verify displacement, control, shaft, mounting flange, ports, rotation and machine requirements against the complete nameplate/type code before ordering.

Manufacturer reference: Danfoss Power Solutions product information.

Danfoss and related model names are used for technical identification. INTEREQ is independent and not an authorized Danfoss distributor. Availability is on request and subject to confirmation.

Motor selection should account for the circuit, required displacement, operating pressure and speed, as well as the machine’s duty cycle. Shaft and mounting dimensions, port positions, rotation, case-drain requirements and options such as a brake, sensor or valve can distinguish versions within a family. Compare the full code and nameplate data before treating a listing as a replacement candidate.

Model identification and replacement compatibility

For a replacement review, send the complete Danfoss type code or a clear nameplate photo, together with the machine make, model and the component’s role in the circuit. If available, include the existing displacement, operating pressure and speed, connection drawing, and any control or accessory codes. This helps distinguish a family-level match from a configuration that fits the installed system.
