Description

Liebherr FMF Fixed-Displacement Plug-In Axial Piston Motor for hydraulic equipment

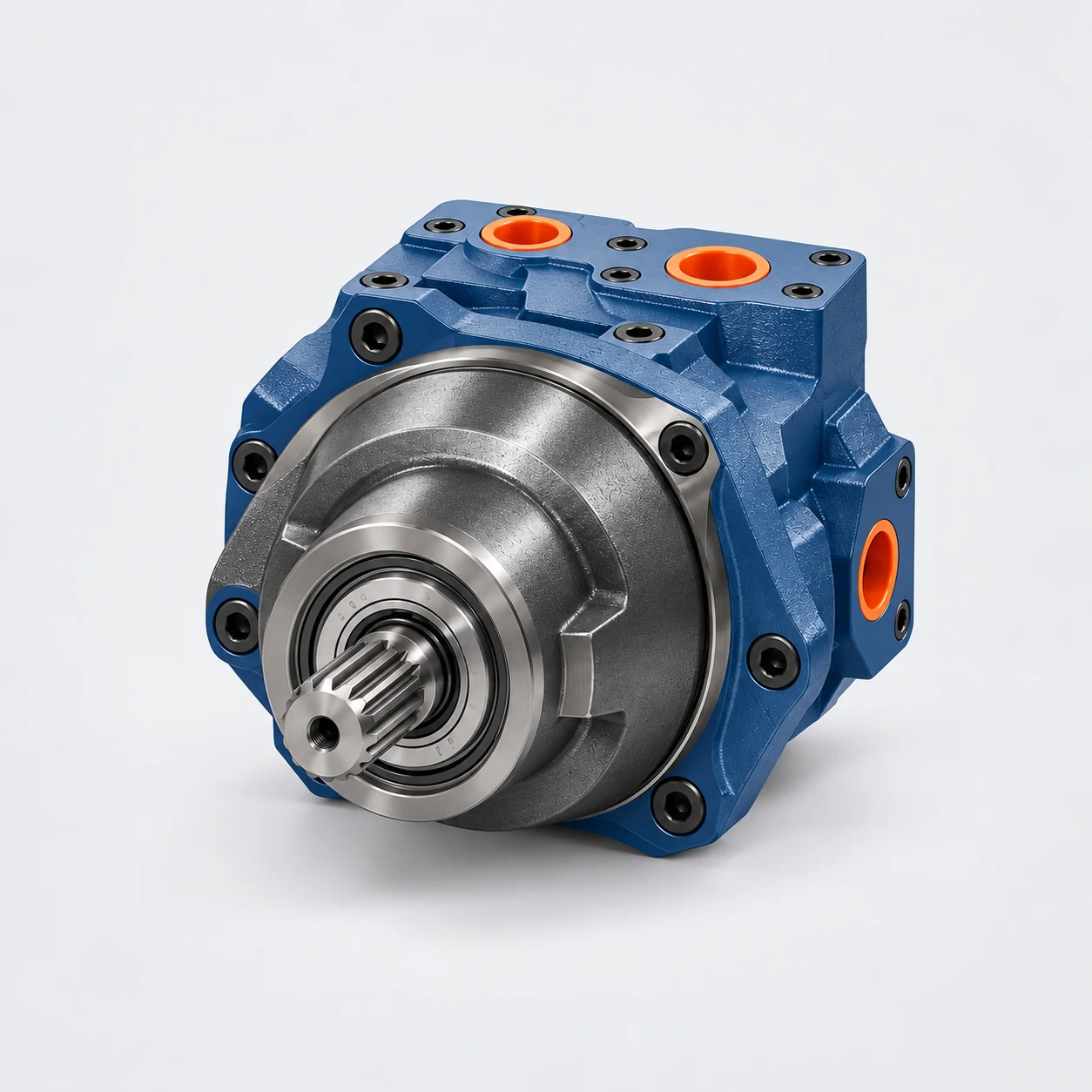

liebherr fmf — Original INTEREQ-designed plug-in axial piston motor, more front-facing view

Confirm that the Liebherr FMF hydraulic motor matches the machine; use the complete type code to verify compatibility. Liebherr FMF Fixed-Displacement Plug-In Axial Piston Motor is part of Liebherr’s axial-piston hydraulic components portfolio. The FMF family is intended for hydraulic equipment where circuit type, nominal size and operating characteristics match the machine design. Variants within one family can differ in displacement, controls and mechanical interfaces.

The family name and nominal size identify only part of the configuration. A complete type code, nameplate image and machine information are needed to assess replacement suitability. This listing is a family-level reference; it does not mean that every variant is directly interchangeable.

Technical specifications

Manufacturer	Liebherr
Product family	FMF
Model / version	FMF
Product type	Fixed-displacement plug-in axial piston motor
Nominal displacement / size	25, 32, 45, 58, 64, 90, 100, 125, 165 and 250 cm³/rev family sizes
Hydraulic circuit	Open / closed; confirm exact circuit variant
Displacement principle	Fixed displacement
Control version	Fixed displacement
Nominal and maximum pressure	Nominal 350 or 420 bar; maximum 380 or 450 bar, depending on size
Additional configuration	Plug-in motor; manufacturer lists fan, swing and working drives
Permissible speed range	Verify minimum and maximum speed for the exact configuration and fluid conditions
Shaft and drive interface	Match shaft form, dimensions and coupling to the installed unit
Mounting flange / plug-in interface	Confirm standard, dimensions and orientation against the machine interface
Hydraulic ports	Confirm port type, size, position and connection standard from the nameplate or drawing
Rotation / direction	Check the specified direction and any rotation-dependent port or control arrangement
Complete type code	Required to identify exact configuration; provide a clear nameplate photo
Condition and availability	Confirmed for the specific unit offered when requesting a quotation

Applications

Agriculture and forestry, construction, maritime applications, mining and special vehicles.

In a complete hydraulic system, the pump or motor must match the drive, controls, charge or auxiliary circuit, filtration, cooling and case-drain arrangement as applicable. Check the machine documentation and operating duty before specifying a component.

Key features and compatibility

Sizes have different pressure and speed limits. Match nominal size, rating, plug-in interface, shaft, port pattern, rotation and circuit type to the original motor.

Compare the original unit’s control response, drive interface, pressure and speed range, port arrangement, rotation and fluid requirements. Confirm limits for the exact version rather than relying on family-level values alone.

Model identification and replacement selection

Send the full type code, nameplate and interface measurements. Confirm speed, torque, fluid, case drain and application requirements against the exact manufacturer data sheet.

For a quotation, provide the complete Liebherr type code, machine make and model, a legible nameplate photo, and photographs or measurements of the shaft, mounting face and hydraulic ports. If the nameplate is incomplete, those details help identify remaining configuration differences.

Condition, availability and delivery options are confirmed for the specific unit offered. Please include identification details when using the inquiry form on this page.

Related Liebherr products

Browse the Liebherr FMF Constant-Displacement Hydraulic Motors series category or all hydraulic pumps and motors.

Related Liebherr Hydraulics product families

Other hydraulic brands

Compare other hydraulic pump and motor brands: Bosch Rexroth · Bucher · Casappa · Danfoss · Linde · NACHI · Parker · Poclain · Sunfab · HAWE.

Manufacturer reference: Liebherr FMF product information / technical data. See also Liebherr’s hydraulic pumps and motors download centre.

Liebherr and its product names are used for technical identification. INTEREQ is independent and not an authorized Liebherr distributor. Confirm the complete configuration, condition and availability before ordering.

For pricing, availability, inspection details and international delivery options, contact us using the inquiry form below.
